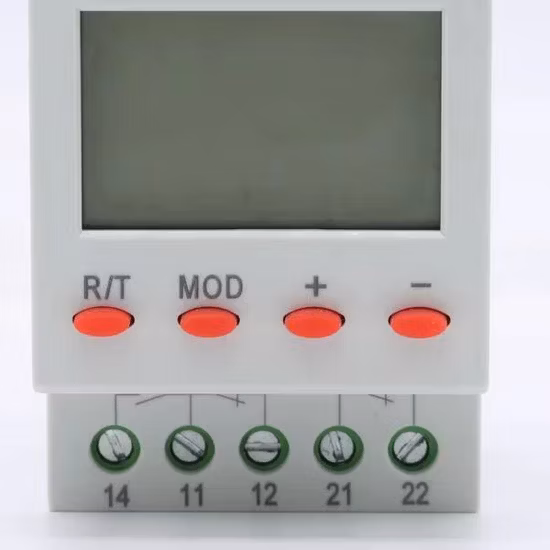

LCD Dislay Voltage Relay Under Voltage and Over Voltage Protection Relay with Timing and Counting Function
LCD dislay voltage relay Under Voltage and Over Voltage protection relay with timing and counting function Technical par
Description
Basic Info
Model NO. | ZHRV2-45 |
Action Principle | Electronic Type |
Size | Miniature |
Type | Voltage Relay |
Rated Frequency | 50Hz/60Hz |
Contact Configuration Capacity(a) | 10A |
Name | Voltage Monitoring Relay |
Key | Voltage Control Relay |
DIN Rail Standard | Width 35mm |
Transport Package | Standard Packing |
Specification | 80*44*65mm |
Trademark | AKMAN |
Origin | China |
HS Code | 8536490000 |
Production Capacity | 2000PCS/Week |
Product Description
LCD dislay voltage relay Under Voltage and Over Voltage protection relay with timing and counting functionTechnical parameters:
Rated supply voltage | 3-phase 3-wire 220V-450V AC |
Rated supply frequency | 50/60HZ |
Phase failure and phase sequence | ≤0.5s |
Delay error | ±10%+0.1s |
Measurement accuracy | ±1%/RMS |
Data storage time | 10 years |
Maximum timing capacity | 9999h 59m |
Maximum Counting capacity | 999999 |
Maximun count frequency | 5Hz |
Accumulated timing error | ≤0.001% |
Count input signal | AC/DC 20V-450V |
Use category | AC-15 |
Short circuit protector type and Max rating | NT00-6A |
IP Class | IP20 |
Class of pollution | 3 |
Electrical Life | 105 |
Mechanical life | 106 |
Altitude | ≤2000m |
Allowable relative humidity | ≤50%(40 oC) No condensation |
Contact Configuration capacity(A) | 10A |
Contact capacity | Ue/le:240V/1.5A 415V/0.95A |
Contact output type | 1C/O+1NC |
Standard guide | width 35mm(IEC/EN60715) |
Features:Built-in microprocessors,true RMS measurement voltage measurement accuracy ≤1%.Measuring frequency 45Hz~65Hz,button setting.LCD displays voltage and fault information,protection can be turned on or off.Check 3- phase voltage value by button, with counting and timing function Record number and time of useing devices.DIN rail mounting.Applications:Used in air conditioning units,elevator machine roompumpsfans and other motor control applications, as protection ofover-voltage,under-voltage phase loss, phase sequence, 3-phase imbalanceWhen the power supply is abnormal, stop supply to protect the equipment.
Function diagram
Dimensions(mm)
